Product Details

Product Name: crusher mantle/symons concave/Manganese liner/Cone Crusher wear parts/ concave/bowl liner/cone liners/high Manganese casting steel cone liners/cone parts/crusher parts/crusher wearing parts/crusher spare parts/cone mantle concave/cone spare parts/cone wear parts/jaw crusher parts/jaw plate/fixed jaw plate/movable jaw plate/jaw liners

Applications: Widely used in mining industry, Quarrying & Aggregate, metallurgical industry, construction industry, chemical industry and silicate industry for crushing hard and medium hard ore and rock, such as iron or, limestone, copper ore, sandstone, quartz and so on.

Material:

Following is our normal material component,we also can customize as your request.

Material	C	MN	CR	P	SI	S	Mo	Ni	Cu
ZGMn13Cr2	1.25~1.35	12.7~13.5	2.0~2.2	≤0.06	0.5~1	≤0.06
ZGMn18Cr2	1.25~1.35	17~18.5	2.0~2.2	≤0.06	0.5~1	≤0.06
ZGMn22Cr2	1.1~1.4	20~24	1.5~2.5	≤0.06	0.3~0.8	≤0.04
KMTBCr26	3.6-3.75	0.5-0.9	25-27	≤0.06	0.4-0.8	≤0.06	0.4-0.5	0.4-0.5	0.4-0.5

Cone Crusher Adjustment Cap Features

01
Available many material grades we have a cost-effective solution to your specific requirements
02
Quality assured to ISO 9001:2015 to ensure fit and performance
03
Trusted by crusher operators all over the world, due to 100% adaptability and the same quality as the OEM parts

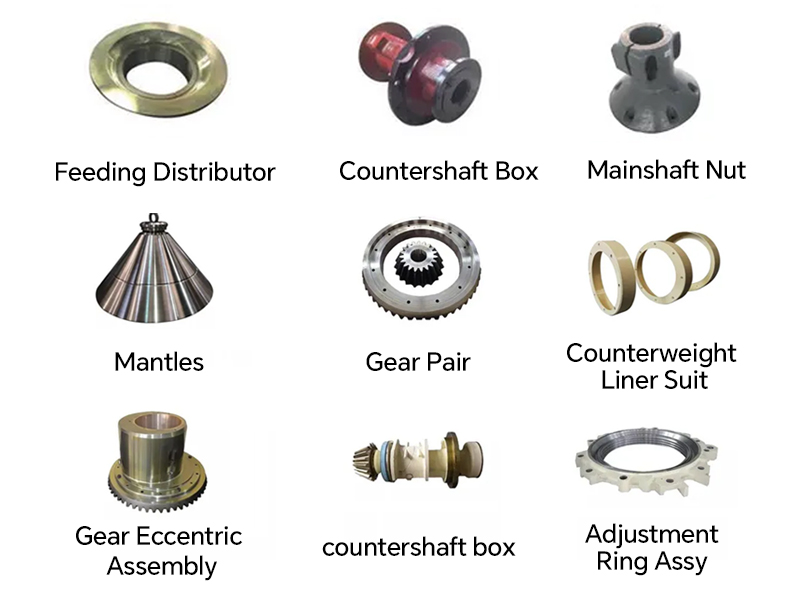

The crusher spare parts we mainly provide can suit the brand model below.

899.0155-00 Cone Crusher
CH/CS series	CH420 CH430 CH440 CH660 CH860 CH865 CH870 CH890 CH895 CS420 CS430 CS440 CS660
HP series	HP100 HP200 HP300 HP400 HP500 HP800
GP series	GP11 GP100 GP200 GP300 GP500 GP220 GP330 GP550 GP100S GP200S GP300S GP500S
MP series	MP800 MP1000 MP1250 MP2500
Jaw Crusher
C series	C63 C80 C95 C96 C105 C106 C100 C110 C120 C125 C140 C145 C150 C160 C200
Impact Crusher
NP series	NP1213 NP1315 NP1520 NP1620 NP2023
Gyratory Crusher
S series	S4265 S5065 S5475 S6089 S6275 S60110

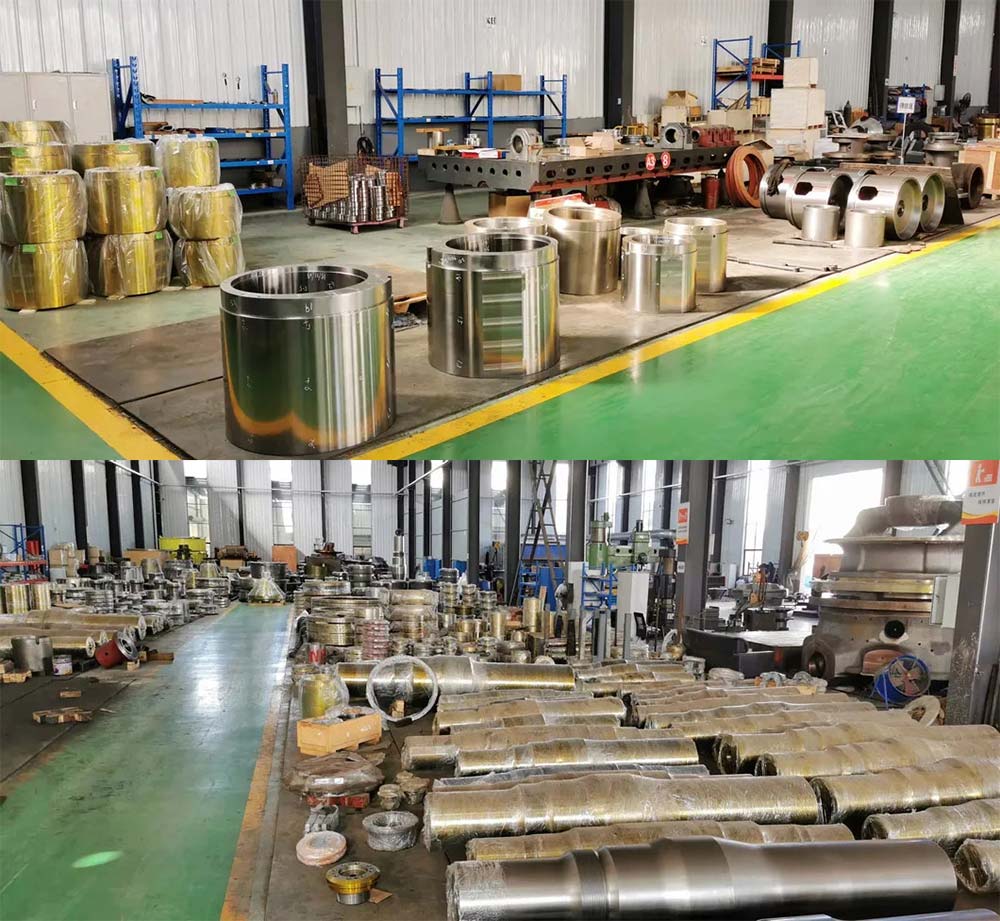

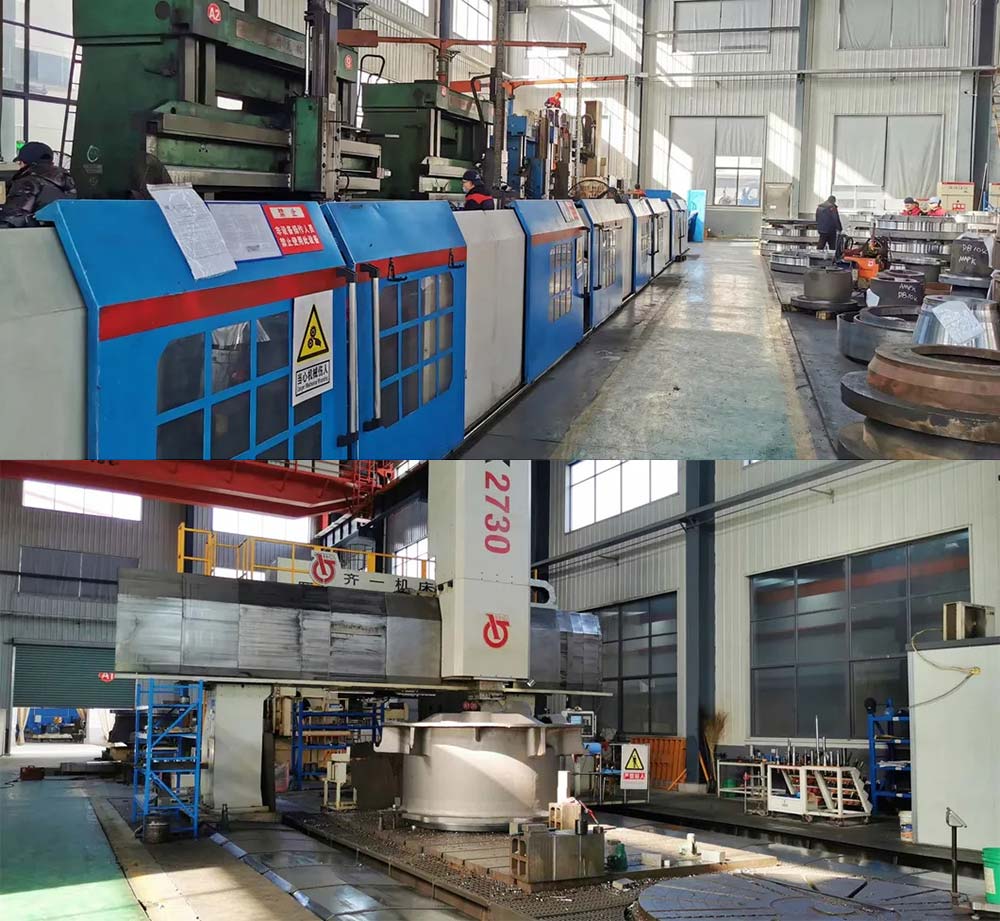

OUR EQUIPMENT

Our company is equipped with full-time technical personnel, who can analyzing the processing drawings and compile the processing technology by themselves, and maintain the on-site process discipline supervision; We also have professional QC more than 5 employees, to inspect the size and quality of all the workpieces, All measuring equipment are imported brands (Japanese Sanfeng, Germany Marr, etc.); with portable three-coordinate measuring machine, we insist on regular inspecting the measure equipment, to make sure the good quality of our products.

Guangzhou Future Green Machinery Co. ,Ltd.

1	CNC vertical lathe	C5380	1	75T	Carrying heavy CNC
2	CNC vertical lathe	CK5225	1	13T	Qiqihar first machine tool
3	CNC vertical lathe	CK5225	1	13T	Chengqi two tile machine CNC
4	CNC vertical lathe	CK5225	1	13T	Chengqi two tile machine CNC
5	CNC vertical lathe	CK5240	1	20T	Chengqi two tile machine CNC
6	CNC vertical lathe	CK5240	1	32T	Chengqi two tile machine CNC
7	CNC vertical lathe	CK5240	1	32T	Chengqi two tile machine CNC
8	Turing center	TAC-16A	1	8T	By Shenyang Heath
9	CNC vertical lathe	CK5116	1	6T	Chengqi two tile machine CNC
10	CNC Floor Boring and Milling Machine	TJK6920 5mx10m	1	50T Turntable	Shenyang Kunji
11	Turning and milling complex machining center	XK2730*80 4mx10m	1	80T	Carrying heavy CNC
12	Longmen pentahedron machining center	GRU2340 3mx4m	1	25T	By Ningbo Haitian
13	130 horizontal boring	T6213110TShenyang Zhongjie
14	130 floor boring	T6913 cp130	1	30T	Shenyang Zhong胆
15	CNC sleeper	CK61125	21	8T	Tianshui
16	Radial drilling machine	Z3080	3	10T	Shenyang Zhongjie
17	Radial drilling machine	Z3050	1	5T	Shenyang Zhongjie
18	Universal Radial D「illing Machine	Z3040	1	5T	Shenyang Zhongjie
19	Tapping machine	M8-M36	2		Taiwan
20	Haucken Surface Finishing Machine		1

COMPANY PROFILE

Guangzhou Future Green Machinery Co.,Ltd. founded in 2021, our office is located in Guangzhou. We are an innovative enterprise. The company always ensures the technological advancement of the equipment: higher efficiency, lower power consumption, and more environmental protection. Our main products are crushing equipment, sand making equipment, powder making machinery, feeding equipment, cement plant supporting machinery, etc. The company will continue to explore, research, develop, and innovate in new fields, while constantly helping customers solve various difficulties and problems, and creating greater value for customers.

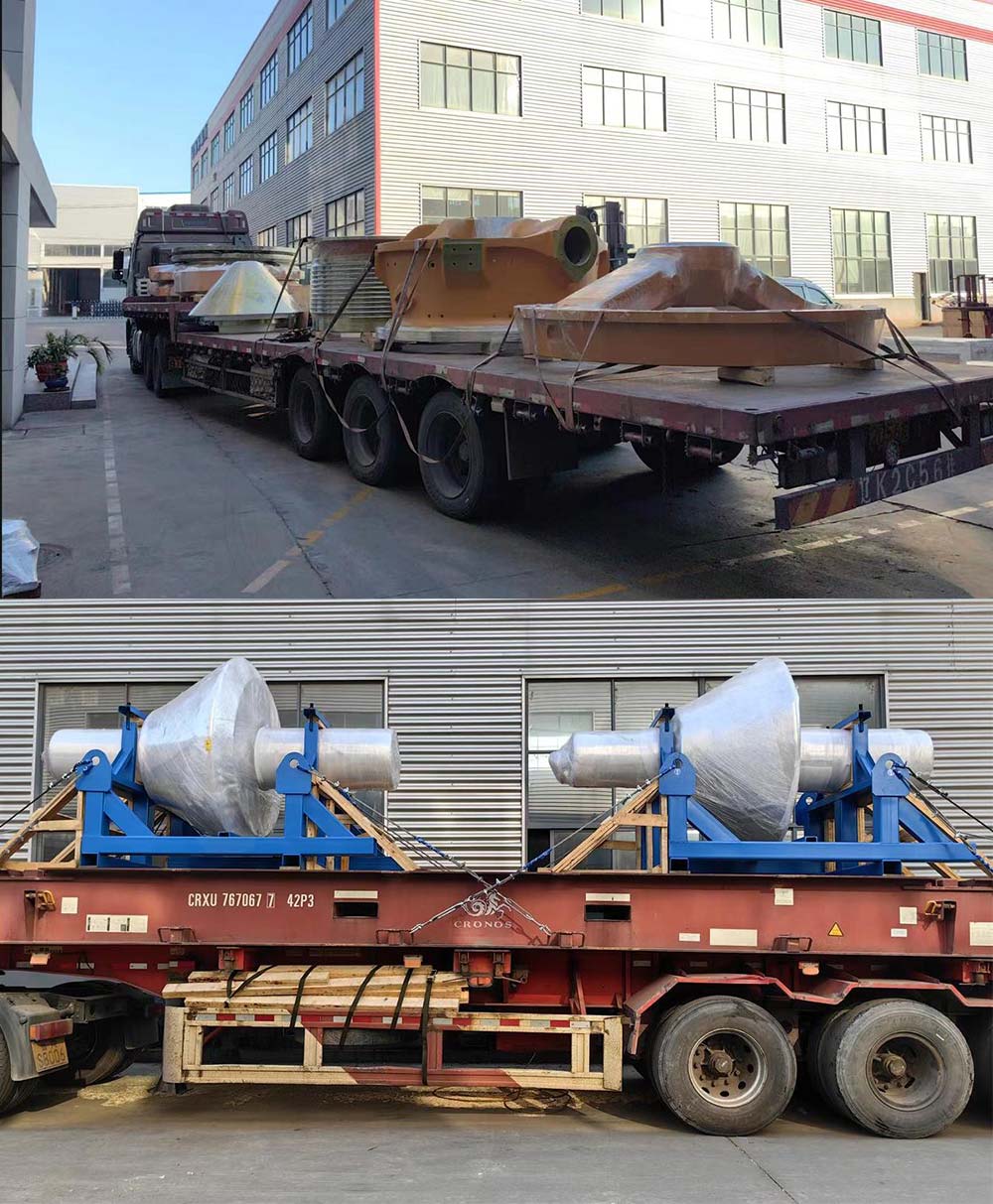

PACKAGE&DELIVERY

CASE STUDIES FROM VARIOUS INDUSTRIES

Granite Processing Line in Astana
Location: Astana, Kazakhstan
Bluestone Crushing Production Line
Location: Far Eastern Region, Russia
Quartz Sand Production Line
Location: Astana, Kazakhstan

Tags : HP300 HP500 Srone Crusher Parts Manganese Steel Wear Parts Mantle and Concave Cone Crusher of Mining Parts Crusher Bowl Liner And Mantle Crusher Spar Parts Bowl Liner OEM Crusher Parts

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

Mining Cone Crusher Parts Counter Shaft Bushing Suit HP200

✅ Advanced Metallurgy ✅ Interchangeable with Metso/Sandvik/Terex models (MP1000-CH880-C155) ✅ Zero-Run-In Performance，Pre-engineered clearance ✅ Cost Efficiency 40-60% cost savings vs. OEM ✅ Local after-sales team

Crushing Equipment CH440 H4800 Cone Crusher Replacement Parts Lower Frame Bottom Shell

✅ 360° Full-Range Supply Capability ✅ Precision Sand Casting Superiority ✅ OEM-Exceeding Fit Performance ✅ Downtime Elimination Engineering ✅ Local after-sales team

Sand Casting Steel Bottom Shell for Cone Crushers

✅ 360° Full-Range Supply Capability ✅ Precision Sand Casting Superiority ✅ OEM-Exceeding Fit Performance ✅ Downtime Elimination Engineering ✅ Local after-sales team

PE600X900 Stone Jaw Crusher with SGS

✅ OEM Compatibility: Perfect fit for Sandvik CV200/Terex Canica/Metso Barmac replacements ✅ Custom Engineering: Tailored for basalt/river pebble/granite/iron ore specifics ✅ Total Cost Ownership: 3-year ROI guarantee with documented case studies ✅ Sustainable Production: Recyclable wear components with take-back program

Bearing Cover Fit for C125 C130 C140 C Series Jaw Crusher Accessories

OEM Price CS440 Cone Crusher High Manganese Steel Spare Parts Arm Shield for Hot Sale

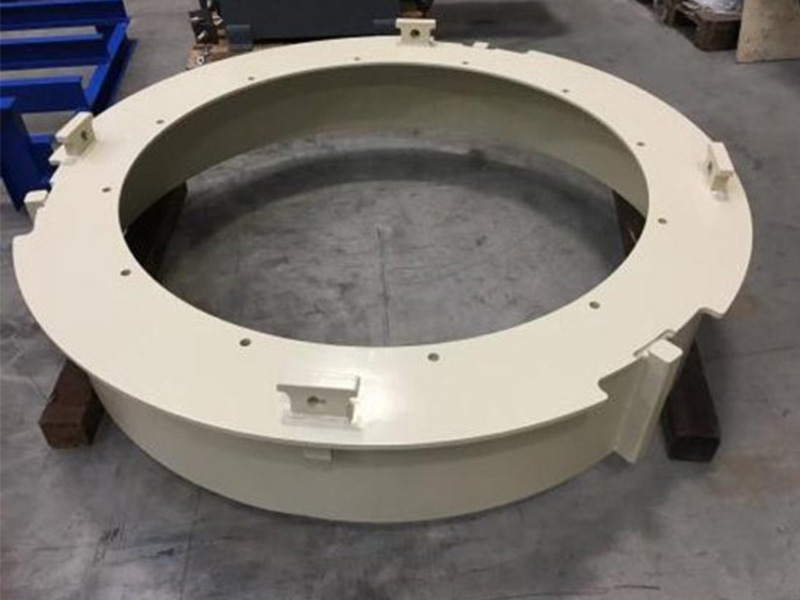

Cone Crusher Adjustment Ring is a crucial component that plays a pivotal role in cone crusher operation. its facilitates precise adjustments, including the gap between the mantle and concave, allowing for fine-tuned control over the particle size produced during crushing.Cone Crusher Adjustment Ring is a key component for enhancing the performance and production efficiency of cone crushers. Whether used in ore mining, construction, or mining industries, it is indispensable for ensuring the precision and reliability of the crushing process.
