✅ 360° Rotation with 230° Swing
✅ 4:1 Safety Factor on All Loads
✅ Precision-Forged, >1080 MPa Strength
✅ Full Metric & Custom Thread Sizes
✅ Corrosion-Resistant for Harsh Environments
Número de artículo :
FG201530Pedido (MOQ) :
1Origen del producto :
ChinaPlazo de entrega :
20 daysContacto :
+86 18420105150In demanding lifting operations, the connection point isn't just hardware—it's the critical link between safety and efficiency. Our hoist rings are engineered to be the ultimate pivot point, combining innovative mechanics with superior metallurgy for unmatched performance and durability.

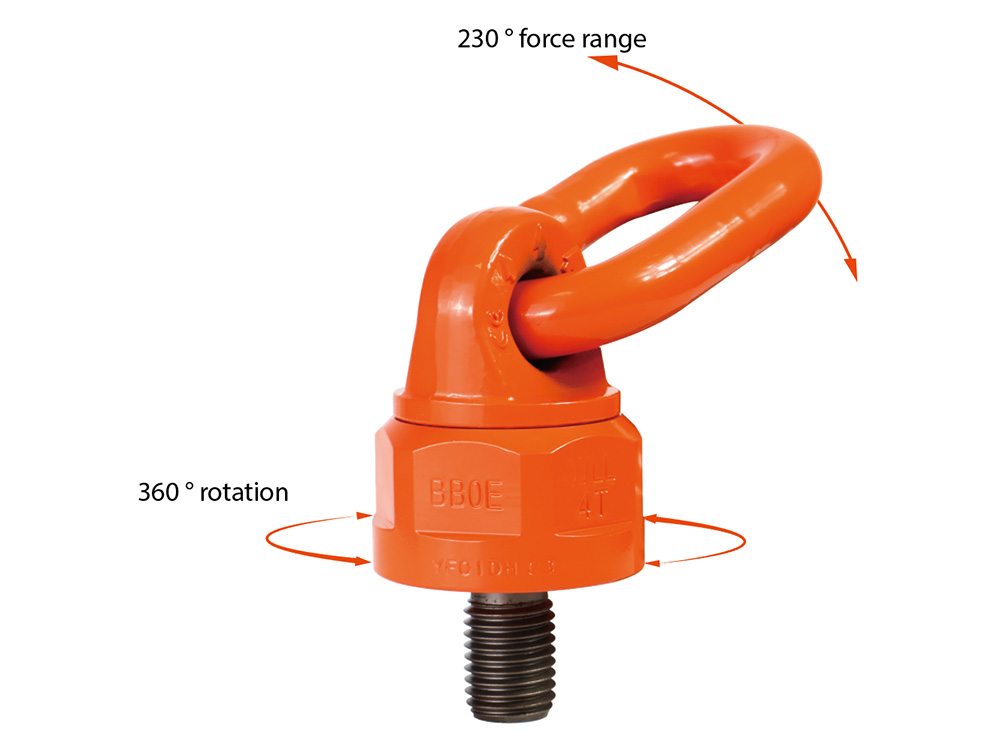

The built-in ball structure allows for smooth 360° continuous rotation and a wide 230° pivot. This design ensures the ring swivels freely with changing load directions, eliminating dangerous cable twist and reducing wear on your slings and rigging.

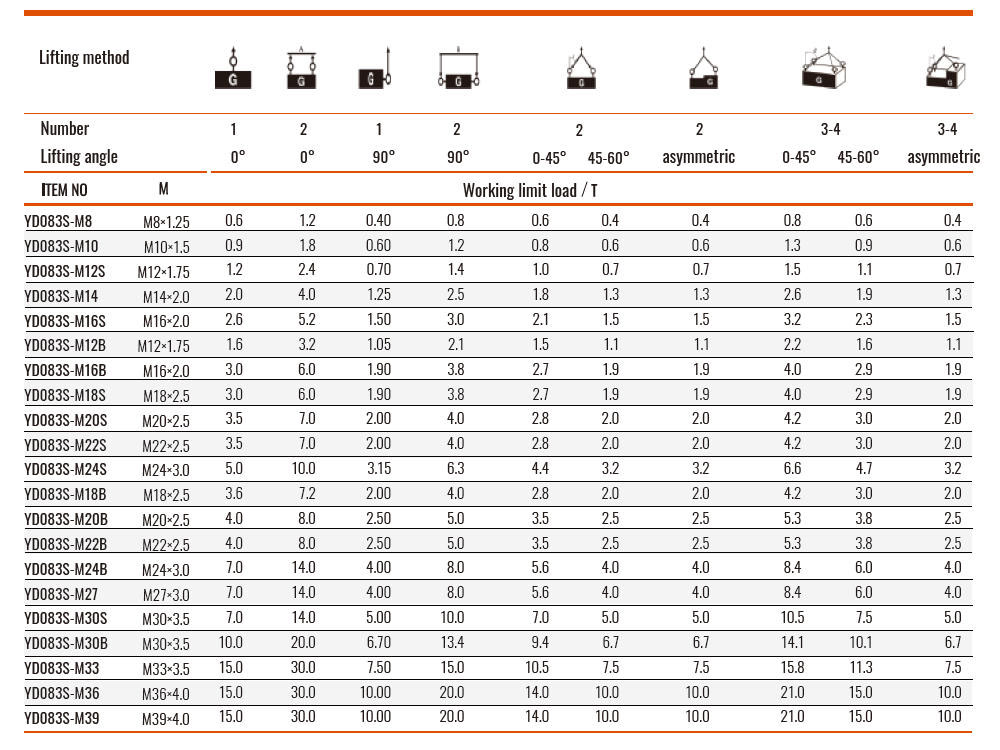

We guarantee a minimum 4:1 safety factor across the entire rated load range, which is clearly and permanently marked on the base. This rigorous standard, combined with load-specific ratings for different force directions, prevents misuse.
The bolt is made from precision-forged alloy steel with a scientifically optimized composition. Through controlled quenching and tempering, it achieves a tensile strength exceeding 1080 MPa, forming an incredibly strong and reliable core.

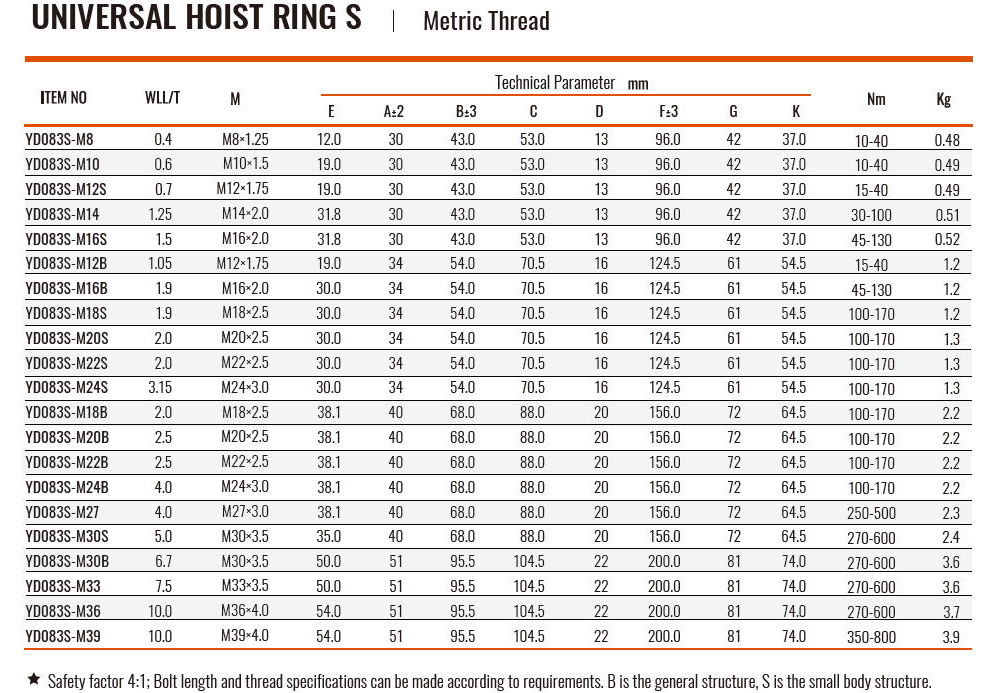

We offer a complete range of standard thread sizes (M8 to M150, 0.4T to 50T) and specialize in custom threads. Every thread is precision-checked with a 6g plug gauge. The hexagonal base design allows for easy, secure installation.
Beyond standard duty, a specialized surface anti-corrosion treatment makes these rings suitable for harsh environments like offshore, marine, and high-chloride applications, ensuring long-term reliability where ordinary hardware would fail.
Unlike traditional rigid eyebolts that lose significant load capacity when subjected to angular forces, our universal hoist rings are designed to autonomously align with the direction of the load.
As tension is applied to the sling, the bail pivots up to 230 degrees and the central body swivels a full 360 degrees simultaneously. This dynamic articulation ensures that the lifting force is always maintained in a straight line relative to the bolt axis. By eliminating dangerous side-loading and shear stress, the hoist ring securely transfers the weight to the structural body of the load.
We offer an extensive range of configurations to match your exact heavy lifting requirements.
Standard eyebolts lose significant capacity when the load is applied at an angle, increasing the risk of shearing or bending. A universal hoist ring pivots 230° and swivels 360°, ensuring the lifting force is always directly aligned with the bolt axis, maintaining its full rated capacity at any angle.
A 4:1 safety factor means that the hoist ring's ultimate breaking strength is at least four times its stated Working Load Limit (WLL). This provides a critical buffer against shock loads and dynamic forces in harsh industrial environments.
Yes, absolutely. We specialize in providing custom threads, including extended, shortened, fine, metric, or American (UNC) threads. Please contact us with your specific mounting requirements.
